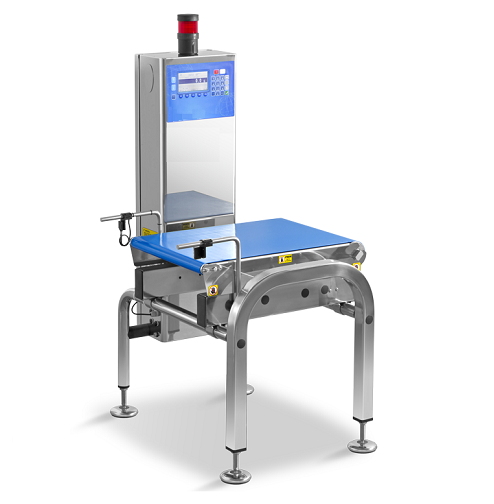

The measuring machine adopts the innovative structure of the roller conveyor line, the perfect combination of the roller shaft and the electronic scale, by passing the product through the conveyor belt into the measuring conveyor belt neatly and equally spaced, and when passing the photoelectric sensor located at the front of the measuring conveyor belt, the weight detector begins to measure the product. When the product passes through the conveyor belt of the measuring electronic scale, the weight sensor completes the measurement of the product and displays the data to the operation department. The computer automatically compares the displayed measurement data with the pre-set weight range value, and sorts according to the requirements. All kinds of information are stored automatically and have a variety of output methods.
020-34563445The automatic Sorting machine needs to record the signal returned by the image processor, make statistical analysis of various data information, and provide it to the host computer; Track and locate each bottle, locate the unqualified product, and accurately remove the unqualified bottle when it reaches the eliminator position, and the emptying rate of the eliminated bottle cannot be higher than 5%. The automatic sorting machine is stable and reliable, and can be started smoothly after sudden power failure and power on.
The inspection machine can carry out all-round sorting of the measured object, send the sorting result information to the automatic sorting system, analyze and summarize the received information, and control the single stage or multi-stage stripper to remove the unqualified bottle. A weighing device that measures the weight of objects and automatically classifies them according to a set weight standard. This type of equipment is widely used in automated production lines, logistics centers, storage systems, and other situations where objects need to be sorted and sorted by weight. It usually has a high-precision Weighing system, which can accurately measure the weight of the object and ensure the accuracy of the separation.
The ability to complete the weighing and sorting process without the need for human intervention increases efficiency, with multiple preset weight ranges, according to which objects can be divided into different categories to suit different application needs. Suitable for high-speed production lines and sorting systems, it can quickly handle large numbers of objects and improve production efficiency.
With data recording and monitoring functions, can record the weighing and sorting data, the product through a line or manual loading into a scale body, the product into the inspection scale "acceleration section" : the distance between the products will be opened to ensure that into the "weighing section" is a single product rather than multiple products. When the product order is irregular, it can also be sorted by the "acceleration section"; The product enters the "weighing section" of the weight: the weighing system quickly detects the weight of the product; And immediately make a judgment whether the product weight is within the target weight range. If the weight of the product is qualified, it is transmitted to the weighing machine without error; If the weight of the product is not up to standard, a rejection delay signal is given. At the same time, the system will automatically record the number of qualified products and the number of unqualified products.
Technical parameter
Sorting range: 4.0~300.0g(600.0g is also available)
Sorting speed: Max.60 times/min
Sorting accuracy: ±0.2g
Minimum display: 0.1g
Sorting items: (length 20~100mm)(width 20~100mm)(height 5mm or more)
Power supply: AC110/220V,50/60HZ)
Operating temperature: 0℃~35℃
